Scaffold Plank
Engineered to international standards for safety, speed and durability on every job site.
Overview
ACE SCAFFOLD manufactures a complete range of scaffold planks - also called scaffold boards, walk boards or metal decks - that form the safe working platform for frame, ringlock, cuplock and QES scaffolding systems. Our steel planks and aluminum planks are built with an anti-slip embossed surface and hook-on ends that lock onto ledgers without tools, offered in SSP, sand blasting, 240 plank, 320 plank and aluminum (trapdoor and ladder) types with hot-dip or pre-galvanized finish. As a trusted scaffold plank manufacturer, we provide OEM/ODM service, ISO 9001 certification and FOB Shanghai delivery.
Key Features
- Anti-slip embossed working surface
- Steel or aluminum construction
- Meets international load classes
- Hook-on ends, no tools required
- Reinforced profile, low deflection
- OEM / ODM available

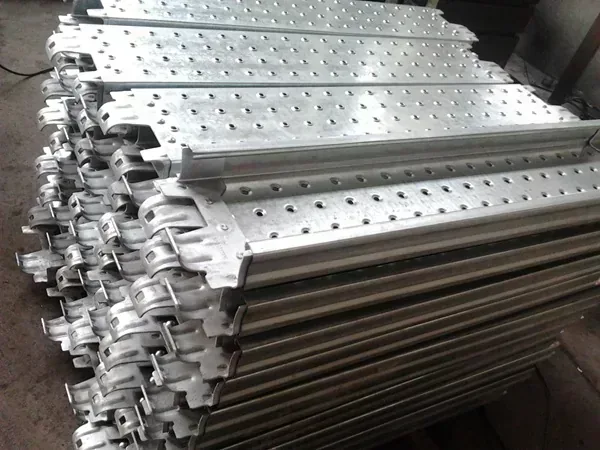

Scaffold plank, also called scaffold board, hooks to the horizontal of the bay, providing a safe working platform. ACE provides a variety of planks including steel plank and aluminum plank.
Our scaffold planks form the safe working platform for any system. Manufactured from high-tensile steel or lightweight aluminum with an anti-slip embossed surface, they meet international load classes and hook securely onto ledgers without tools. End caps prevent accidental dislodgement, and the reinforced profile resists deflection under concentrated point loads — keeping crews safe at height.
All our scaffold planks are fully compatible with our Ringlock Scaffold, Cuplock Scaffold and QES Scaffold systems.
Scaffold Plank Specifications
| Material | Q235 |
| Surface Treatment | pre-galvanizing / hot dip galvanizing |
| Compliance Standard | EN 12810 / BS 1139 / AS-NZS 1576 |
| Certificate | ISO 9001, CE |
| OEM / ODM | Available |
| Packaging | Bundle / Steel Pallet |
| Lead Time | 30 days (production, excl. sea freight) |
| MOQ | 1 × 20ft Container |
Scaffold Plank Components
| Description | Model | Material | Surface | Unit Weight |
|---|---|---|---|---|

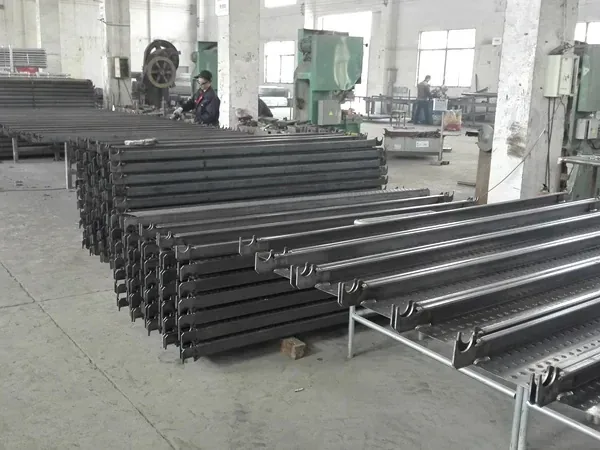

| SSP PLANK 228MM WIDTH | ||||
| SSP plank L0.61m/2" | SSP2 | Q235 | Hot dip galvanizing | 5 kgs |
| SSP plank L0.91m/3" | SSP3 | Q235 | Hot dip galvanizing | 7 kgs |
| SSP plank L1.21m/4" | SSP4 | Q235 | Hot dip galvanizing | 9 kgs |
| SSP plank L1.52m/5" | SSP5 | Q235 | Hot dip galvanizing | 10.9 kgs |
| SSP plank L1.82m/6" | SSP6 | Q235 | Hot dip galvanizing | 12.8 kgs |
| SSP plank L2.13m/7" | SSP7 | Q235 | Hot dip galvanizing | 14.7 kgs |
| SSP plank L2.43m/8" | SSP8 | Q235 | Hot dip galvanizing | 16.6 kgs |
| SSP plank L3.05m/10" | SSP10 | Q235 | Hot dip galvanizing | 20.4 kgs |

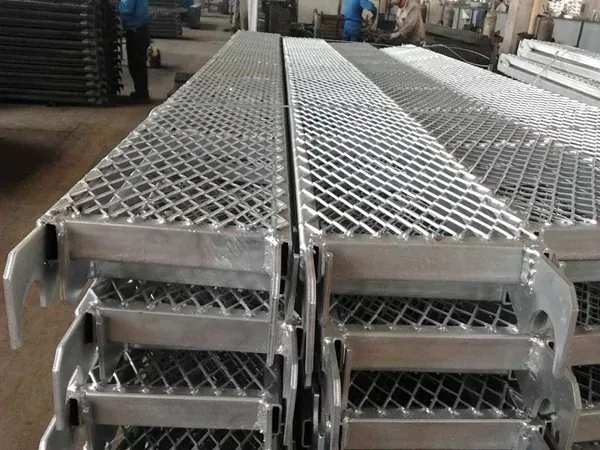

| SAND BLASTING PLANK 228MM WIDTH | ||||
| Sand blasting plank L0.61m/2" | SBP2 | Q235 | Hot dip galvanizing | 6.37 kgs |
| Sand blasting plank L0.91m/3" | SBP3 | Q235 | Hot dip galvanizing | 8.21 kgs |
| Sand blasting plank L1.21m/4" | SBP4 | Q235 | Hot dip galvanizing | 10.25 kgs |
| Sand blasting plank L1.52m/5" | SBP5 | Q235 | Hot dip galvanizing | 12.3 kgs |
| Sand blasting plank L1.82m/6" | SBP6 | Q235 | Hot dip galvanizing | 14.35 kgs |
| Sand blasting plank L2.13m/7" | SBP7 | Q235 | Hot dip galvanizing | 17.28 kgs |
| Sand blasting plank L2.43m/8" | SBP8 | Q235 | Hot dip galvanizing | 18.86 kgs |
| Sand blastingplank L3.05m/10" | SBP10 | Q235 | Hot dip galvanizing | 22.8 kgs |
| 240 PLANK 240MM WIDTH | ||||
| 240 plank L0.60m/1'11" | ASP110 | Q235 | Pre-galvanizing | 5.57 kgs |
| 240 plank L0.65m/2'2" | ASP22 | Q235 | Pre-galvanizing | 5.92 kgs |
| 240 plank L0.91m/3' | ASP3 | Q235 | Pre-galvanizing | 7.49 kgs |
| 240 plank L1.065m/3'6" | ASP36 | Q235 | Pre-galvanizing | 8.39 kgs |
| 240 plank L1.15m/3'10" | ASP310 | Q235 | Pre-galvanizing | 8.89 kgs |
| 240 plank L1.21m/4' | ASP4 | Q235 | Pre-galvanizing | 9.3 kgs |
| 240 plank L1.52m/5' | ASP5 | Q235 | Pre-galvanizing | 11.12 kgs |
| 240 plank L1.57m/5'2" | ASP52 | Q235 | Pre-galvanizing | 11.39 kgs |
| 240 plank L1.82m/6' | ASP6 | Q235 | Pre-galvanizing | 12.93 kgs |
| 240 plank L2.13m/7' | ASP7 | Q235 | Pre-galvanizing | 14.72 kgs |
| 240 plank L2.43m/8' | ASP8 | Q235 | Pre-galvanizing | 16.55 kgs |
| 240 plank L3.05m/10' | ASP10 | Q235 | Pre-galvanizing | 20.11 kgs |
| 320 PLANK 320MM WIDTH | ||||
| 320 plank 320mm - 0.73m/2'5" | LSP25 | Q235 | Hot dip galvanizing | 6.79 kgs |
| 320 plank 320mm - 1.04/3'5" | LSP35 | Q235 | Hot dip galvanizing | 8.74 kgs |
| 320 plank 320mm - 1.09m/3'7" | LSP37 | Q235 | Hot dip galvanizing | 9.06 kgs |
| 320 plank 320mm - 1.40m/4'7" | LSP47 | Q235 | Hot dip galvanizing | 11.06 kgs |
| 320 plank 320mm - 1.57m/5'2" | LSP52 | Q235 | Hot dip galvanizing | 12.17 kgs |
| 320 plank 320mm - 2.07m/6'10" | LSP610 | Q235 | Hot dip galvanizing | 15.35 kgs |
| 320 plank 320mm - 2.57m/8'5" | LSP85 | Q235 | Hot dip galvanizing | 18.58 kgs |
| 320 plank 320mm - 3.07m/10'1" | LSP11 | Q235 | Hot dip galvanizing | 22.24 kgs |

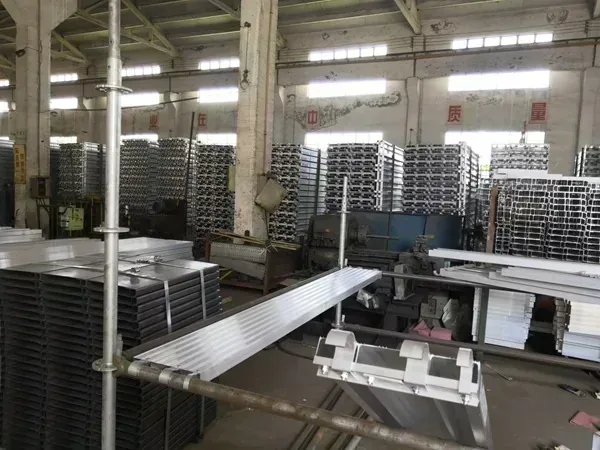

| ALUMINUM PLANK 12" WIDTH | ||||
| Aluminum plank - 0.61m/2" | AP2 | Aluminum | 3.61 kgs | |
| Aluminum plank - 0.91m/3" | AP3 | Aluminum | 4.67 kgs | |
| Aluminum plank - 1.21m/4" | AP4 | Aluminum | 5.73 kgs | |
| Aluminum plank - 1.52m/5" | AP5 | Aluminum | 6.8 kgs | |
| Aluminum plank - 1.82m/6" | AP6 | Aluminum | 7.85 kgs | |
| Aluminum plank - 2.13m/7" | AP7 | Aluminum | 8.9 kgs | |
| Aluminum plank - 2.43m/8" | AP8 | Aluminum | 9.97 kgs | |
| Aluminum plank - 3.05m/10" | AP10 | Aluminum | 12.1 kgs | |
| ALUMINUM PLANK 28" WIDTH | ||||

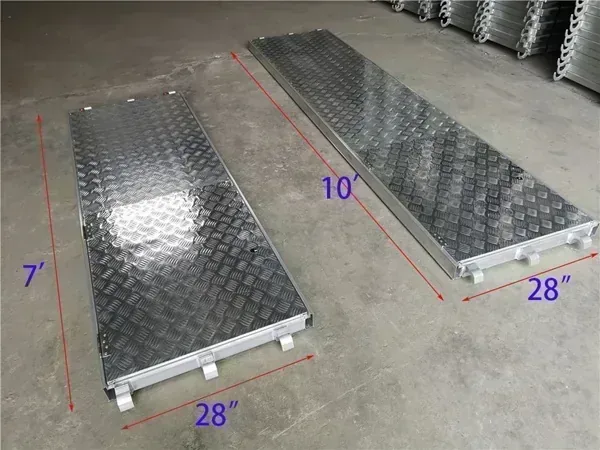

| Aluminum plank with trapdoor & ladder 7' | APT7 | Aluminum | 27.5 kgs | |
| Aluminum plank with trapdoor & ladder 8' | APT8 | Aluminum | 29.2 kgs | |
| Aluminum plank with trapdoor & ladder 10' | APT9 | Aluminum | 34.4 kgs | |
