Swivel Beam Clamp

Engineered to international standards for safety, speed and durability on every job site.

Overview

The Swivel Beam Clamp is a forged steel fitting that swivels on the flange of a structural I-beam so a scaffold, hoist or load can hang from the beam at an angle without drilling or welding. Model TCBCS weighs 2 kgs, is hot dip galvanized and ships FOB Shanghai from ACE SCAFFOLD.

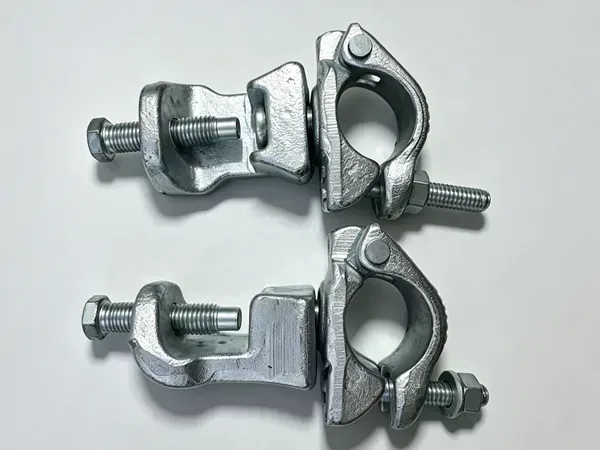

Swivel Beam Clamp - Forged Steel Swivel Beam Clamp TCBCS

Key Features

  • Forged steel clamp swivels on a structural I-beam or H-beam flange
  • Suspends scaffold, hoists or loads without drilling or welding
  • Swivel action rotates the clamp to line up the suspended load
  • Hot dip galvanized for corrosion resistance on site and outdoors
  • Works with 48.3 mm scaffold tube and system scaffolding
  • Forged steel, 2 kgs, FOB Shanghai from ACE SCAFFOLD

The Swivel Beam Clamp anchors scaffold and loads to existing structural steel with a rotating jaw. A forged jaw wraps the beam flange while a setscrew or wedge tightens the grip, and the swivel action lets the clamp rotate around the fixing point so a suspended scaffold bay, platform or hoist lines up with the beam at an angle rather than being locked square. It lets a scaffold bay, a suspended platform or a lifting point hang from an I-beam or H-beam without cutting, drilling or welding the structure. The forged steel body carries the suspended load across the flange, and the hot dip galvanized finish resists corrosion on site and outdoors.

What a Swivel Beam Clamp Does

The Swivel Beam Clamp swivels on the flange of a structural steel beam so scaffolding, a hoist or a suspended load can hang from the beam at an angle without modifying the structure. Use it to start a scaffold run from a steel frame, suspend a platform under a roof truss at an angle, or fix a lifting point to an existing I-beam.

How the Swivel Jaw Grips the Beam

A forged jaw seats over the beam flange and a setscrew or wedge pulls it tight, while the swivel joint lets the clamp rotate around the fixing point so the load lines up with the beam.

Swivels to Line Up the Load

Built to rotate, the clamp lets a suspended scaffold bay or hoist turn to meet the beam at the angle the layout needs instead of locking square. The forged steel body keeps the joint rigid under load while still allowing the swivel to set the alignment.

Hot Dip Galvanized Finish

TCBCS is supplied hot dip galvanized for corrosion resistance in outdoor and site conditions, protecting the clamp through repeated assembly, disassembly and storage.

Suspends Scaffold from Steel

The clamp works with standard 48.3 mm scaffold tube and pairs with tube-and-clamp or system scaffolding, supplied FOB Shanghai by ACE SCAFFOLD with OEM/ODM available.

Swivel Beam Clamp Specifications

DescriptionMODELUnit Weight
Beam Clamp SwivelTCBCS2 kgs

Frequently Asked Questions

Q
What is a swivel beam clamp used for?
It swivels on the flange of a structural steel I-beam or H-beam so you can hang scaffolding, a hoist or a suspended load from the beam at an angle without drilling or welding the structure.
Q
How does the swivel beam clamp attach to the beam?
A forged jaw seats over the beam flange and a setscrew or wedge pulls it tight, while the swivel joint lets the clamp rotate around the fixing point so the load lines up with the beam.
Q
What tube size does the clamp work with?
It pairs with standard 48.3 mm outside-diameter scaffold tube and suits tube-and-clamp or system scaffolding.
Q
What are the TCBCS clamp specifications?
TCBCS is forged steel, hot dip galvanized, weighs 2 kgs and is supplied FOB Shanghai by ACE SCAFFOLD with OEM/ODM available.
