Ringlock Scaffolding Crazy Leg

Engineered to international standards for safety, speed and durability on every job site.

Overview

The Ringlock Scaffolding Crazy Leg — also called a guardrail post crazy leg or guard rail crazy leg — is a bent guardrail standard used to create a guarded opening in the side protection of a ringlock scaffold. It drops into the rosette like any guardrail post, but its offset "crazy" leg carries the top rail across a swing-gate or ladder-access opening so the handrail stays continuous and crews can pass through safely.

Key Features

• Bent guardrail post for swing-gate & ladder-access openings
• Keeps the handrail line continuous across the gap
• Ø48.3×3.2 mm high-strength steel tube (Q345/S355)
• Standard ringlock wedge head — locks into the rosette
• Pairs with one extra ledger one rosette below deck
• Hot-dip galvanized, EN 12810 / AS-NZS 1576 / OSHA

On site, a crazy leg is the answer when a platform needs a protected opening rather than a solid run of guardrail. Mounted on a standard at deck level, it holds the guardrail line over the gap, and an extra ledger fixed one rosette below the deck ties the post back so the opening stays rigid and safe under load. The post is rolled from Ø48.3×3.2 mm high-strength steel, hot-dip galvanized for site, coastal and offshore service, and built to EN 12810 / EN 12811, ANSI, AS/NZS 1576 and OSHA with a 4:1 safety factor. It carries the standard ringlock wedge head, so it locks into the rosette exactly like a normal guardrail post and works with the same standards, planks and brackets as the rest of the system — supplied under ISO 9001 quality from ACE SCAFFOLD, FOB Shanghai.

A crazy leg is a guardrail post with a bend. Where a straight post would block an access point, the offset leg carries the rail across the opening so crews can pass through a swing gate or ladder without breaking the guard line.

Built for Openings, Not Solid Runs

A crazy leg drops into the rosette like any guardrail post, but its bent leg positions the top rail over the gap. That keeps the edge protection continuous across a swing-gate or ladder-access opening instead of leaving a dangerous break in the handrail.

One Extra Ledger Locks It

Mount the post on a standard at deck level, then fix an additional ledger one rosette below the deck. The ledger ties the offset post back to the scaffold, so the opening stays rigid and the guardrail holds its line under load.

Steel & Finish

Crazy legs are rolled from Ø48.3×3.2 mm Q345/S355 high-strength steel and hot-dip galvanized for long-life site, coastal and offshore use. They carry the standard ringlock wedge head and lock into the rosette exactly like a normal guardrail post.

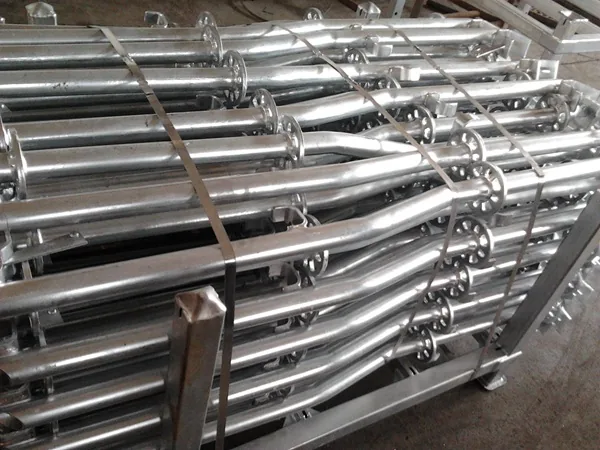

Packaging

Ringlock Scaffolding Crazy Leg Specifications
