Home/Products/Right Angle Adaptor Clamp

Right Angle Adaptor Clamp

Engineered to international standards for safety, speed and durability on every job site.

Overview

The Right Angle Adaptor Clamp is a 90-degree forged connector that locks a standard scaffold tube onto a ringlock rosette at a right angle, so a tube can leave the bay square to the standards. Model TCRAAC weighs 1.56 kgs, is hot dip galvanized and ships FOB Shanghai from ACE SCAFFOLD.

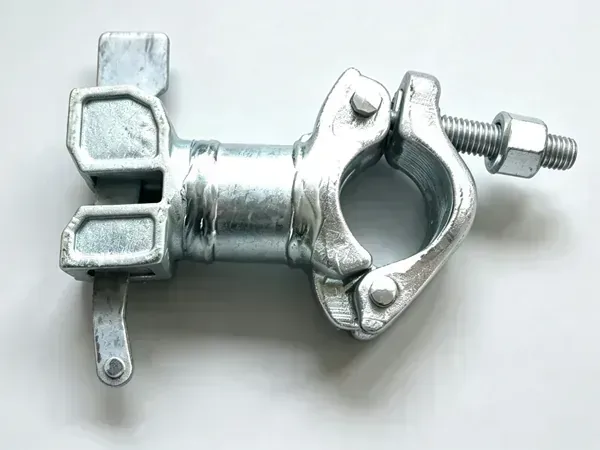

Right Angle Adaptor Clamp - 90 Degree Forged Rosette Adapter Clamp TCRAAC

Key Features

  • Forged 90° clamp locks a scaffold tube to a ringlock rosette at right angle
  • Rosette end engages the ringlock node; tube end grips a 48.3 mm OD tube
  • Holds a true 90-degree joint rigid under working load
  • Hot dip galvanized for corrosion resistance on site and outdoors
  • Made to EN74, BS1139, EN12810 and ASTM standards
  • Forged steel, 1.56 kgs, FOB Shanghai from ACE SCAFFOLD

The Right Angle Adaptor Clamp is the link between a ringlock rosette and a perpendicular scaffold tube. The clamp carries a set of wedges or a bolt that engage the rosette and a tube grip that closes on a 48.3 mm outside-diameter tube, holding the two at a true 90 degrees. It lets a handrail, brace or connecting tube run square out of the scaffold face without disturbing the ringlock nodes, and the forged body keeps the joint rigid under load. The clamp is hot dip galvanized for corrosion resistance and is made to EN74, BS1139, EN12810 and ASTM standards, suitable for ringlock and compatible rosette scaffolding.

What a Right Angle Adaptor Clamp Does

The Right Angle Adaptor Clamp fixes a scaffold tube to a ringlock rosette at exactly 90 degrees. Where a tube must leave the scaffold bay square to the standards — for a handrail return, a façade brace or a connecting span — this clamp makes the joint without cutting into the ringlock node.

How It Connects to the Rosette

The clamp presents a rosette interface on one face and a tube grip on the other. The rosette end drops onto the ringlock rosette and is locked with its wedge or bolt, while the tube end closes around a 48.3 mm OD tube. The two axes are held at a right angle by the forged body.

Forged for a Rigid Joint

Built from forged steel, the clamp keeps the 90-degree geometry under working load and resists the sway and twist that a perpendicular tube would otherwise pass into the scaffold. The tube grip stays tight through handling and re-use.

Hot Dip Galvanized Finish

TCRAAC is supplied hot dip galvanized for corrosion resistance on site and outdoors, protecting the clamp through repeated assembly, disassembly and storage.

Standards and Compatibility

The clamp is produced to EN74, BS1139, EN12810 and ASTM, and fits ringlock and compatible rosette scaffolding with a 48.3 mm tube. ACE SCAFFOLD supplies TCRAAC FOB Shanghai with OEM/ODM available.

Right Angle Adaptor Clamp Specifications

DescriptionMODELUnit Weight
Right angle adapter clampTCRAAC1.56 kgs

Frequently Asked Questions

Q
What is a right angle adaptor clamp used for?
It fixes a standard scaffold tube to a ringlock rosette at a true 90 degrees, so a handrail, brace or connecting tube can run square out of the scaffold face without modifying the ringlock node.
Q
Which tube size does the right angle adaptor clamp fit?
The tube grip closes on a 48.3 mm outside-diameter scaffold tube, which is the standard tube used on ringlock and compatible rosette scaffolding systems.
Q
What standards does the TCRAAC clamp meet?
TCRAAC is produced to EN74, BS1139, EN12810 and ASTM. It is forged steel, hot dip galvanized, weighs 1.56 kgs and is supplied FOB Shanghai by ACE SCAFFOLD with OEM/ODM available.
Q
How does the clamp attach to the rosette?
The clamp drops onto the ringlock rosette and is locked with its wedge or bolt on one face, while the tube end closes around the 48.3 mm tube on the other, holding the two axes at right angles.
