Foldable Aluminum Scaffold

Engineered to international standards for safety, speed and durability on every job site.

Overview

ACE SCAFFOLD manufactures the foldable aluminum scaffold - a 3-in-1 portable access system that converts between a mobile scaffold tower, an extension ladder and a standing work platform. Built from 6061-T6 aluminum alloy with a 1560 x 455 mm trapdoor platform at 1.88 m deck height and a 150 kg safe working load, it folds flat by hand without tools for compact storage and transport. As an aluminum scaffold manufacturer we supply OEM/ODM, ISO 9001 certification and FOB Shanghai delivery.

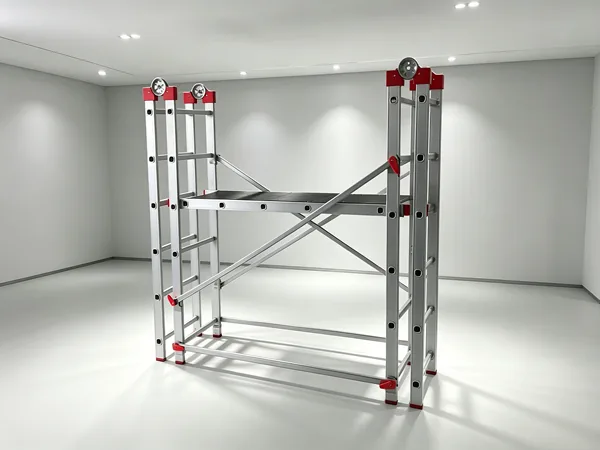

Foldable Aluminum Scaffold - 3-in-1 Portable Aluminum Work Platform

Key Features

  • 3-in-1 tower, ladder & platform
  • Tool-free fold-flat storage
  • 6061-T6 lightweight aluminum
  • 1560 x 455 mm trapdoor platform
  • 150 kg safe working load
  • Lockable casters & anti-slip feet
  • Corrosion-resistant, easy to carry
  • OEM / ODM available

A foldable aluminum scaffold gives crews a lightweight, corrosion-resistant access platform that folds away for storage. Ideal for painting, indoor maintenance, shelving and event work where a steel tower is too heavy to move.

This foldable aluminum scaffold has a maximum load capacity of 150 kg, ensuring stability and safety. Its minimalist silver design, with balanced proportions, blends technology with aesthetics to create a highly practical product. It is the ideal choice for a wide range of DIY projects. Thanks to its versatile design and robust, durable structure, it offers exceptional functionality and safety, making it a valuable asset for both professionals and home improvement enthusiasts.

Structure Display

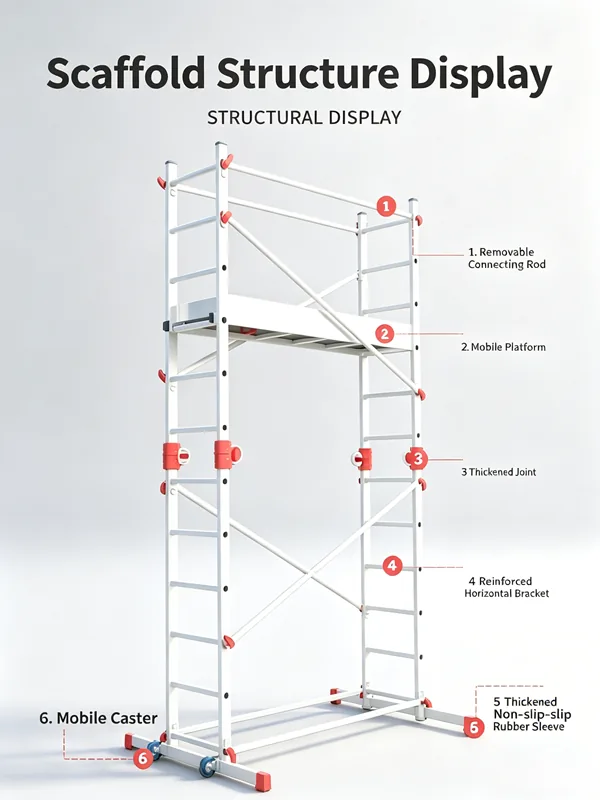

Foldable aluminum scaffold structure display
Foldable aluminum scaffold structure display

Dimensions

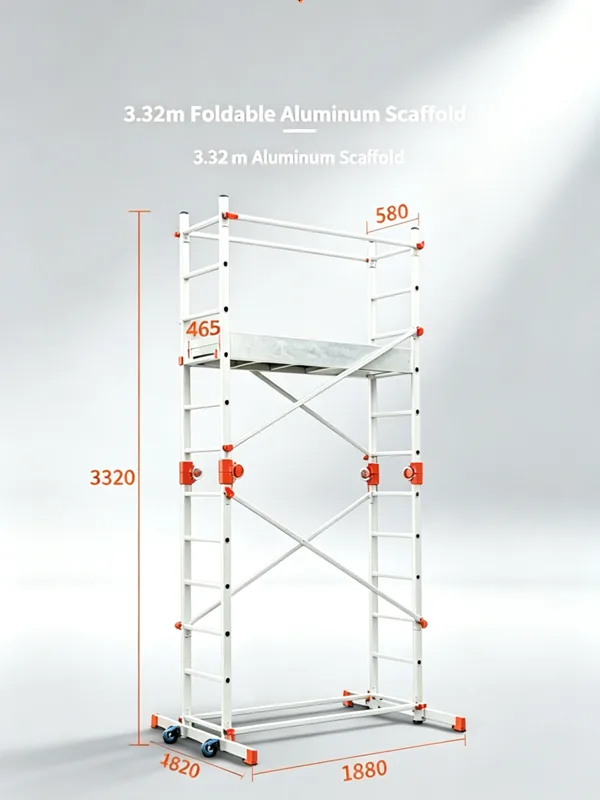

Foldable aluminum scaffold 3.32 m dimensions
Foldable aluminum scaffold 3.32 m dimensions

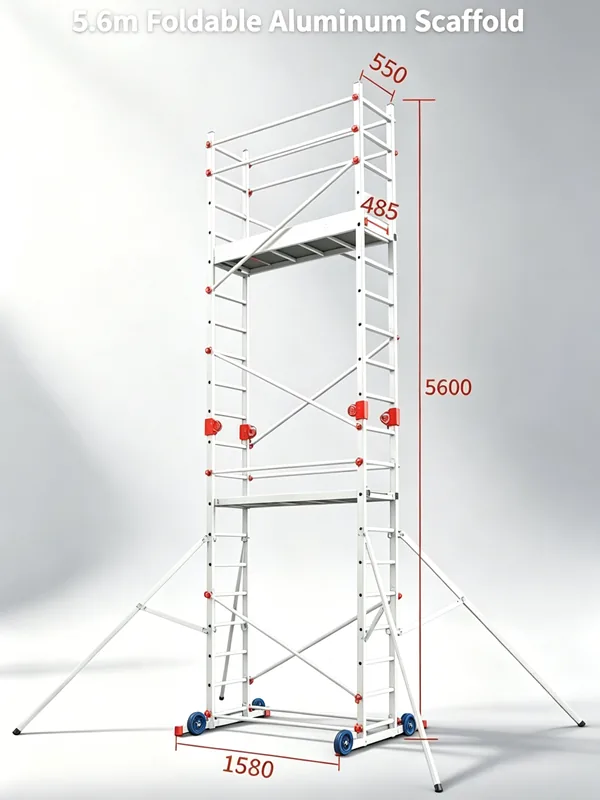

Foldable aluminum scaffold 5.6 m dimensions
Foldable aluminum scaffold 5.6 m dimensions

The platform (with access hatch) measures 1560 x 455 mm. Total length: 1.58 m. Total width: 0.55 m. Height: available in 3.32 m and 5.6 m options.

Key Features

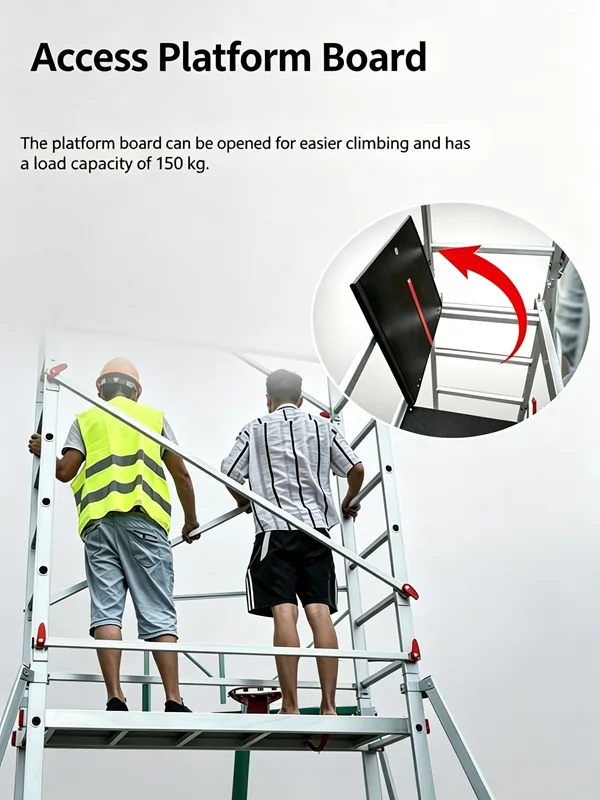

Foldable aluminum scaffold feature 1
Foldable aluminum scaffold feature 1

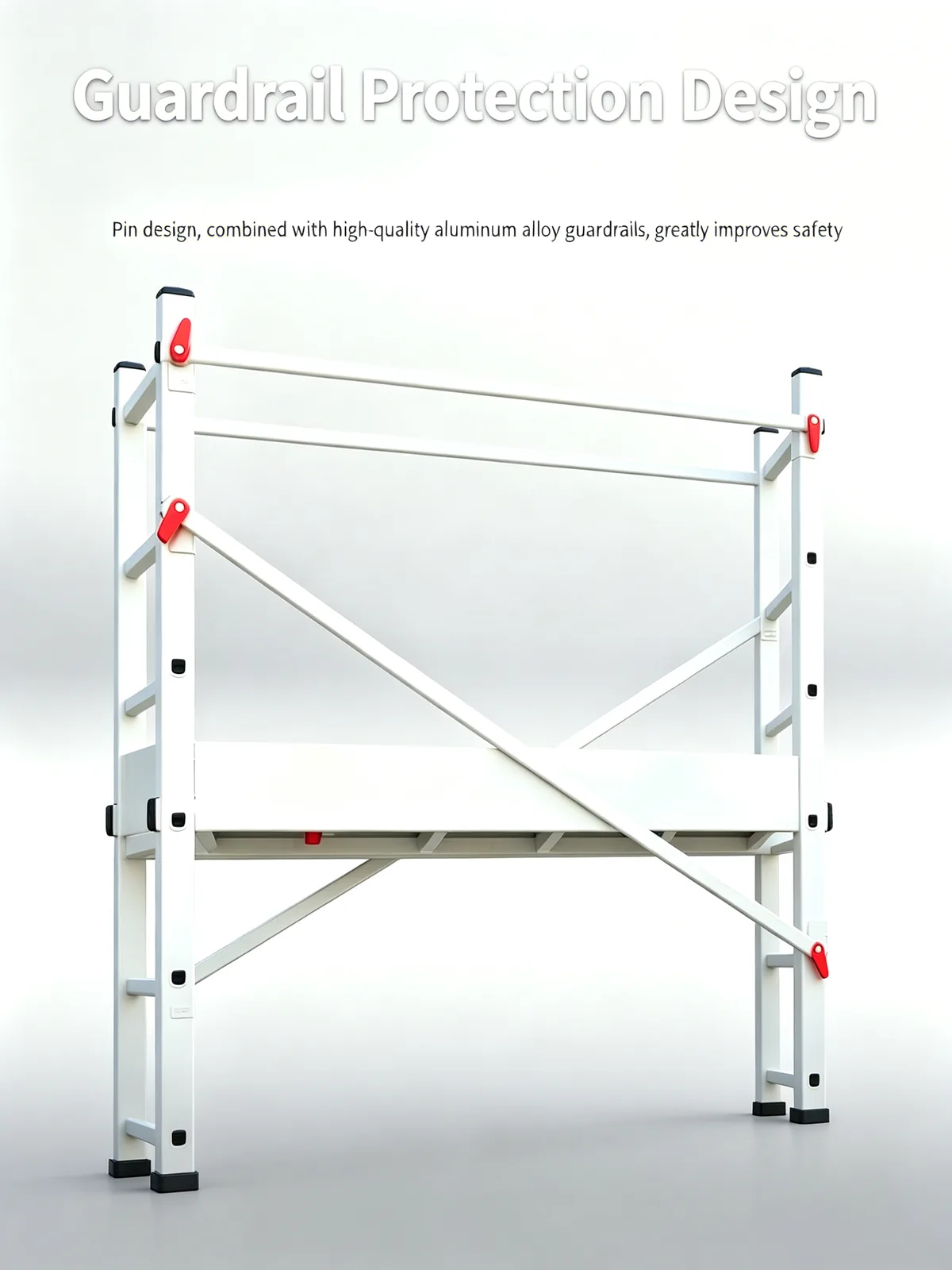

Foldable aluminum scaffold feature 2
Foldable aluminum scaffold feature 2

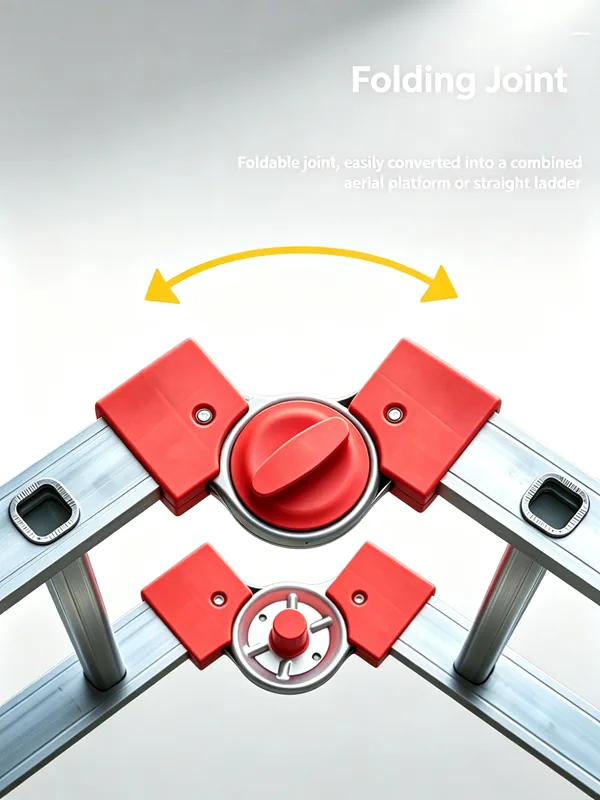

Foldable aluminum scaffold feature 3
Foldable aluminum scaffold feature 3

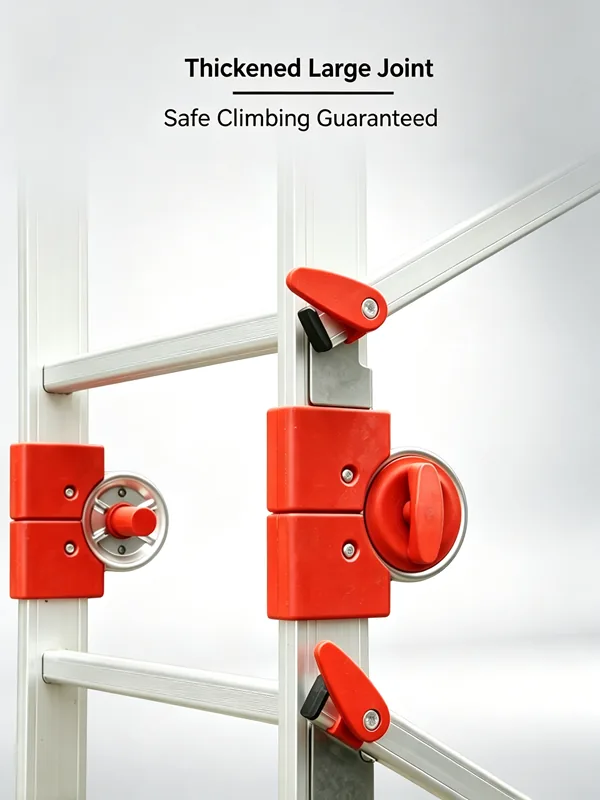

Foldable aluminum scaffold feature 4
Foldable aluminum scaffold feature 4

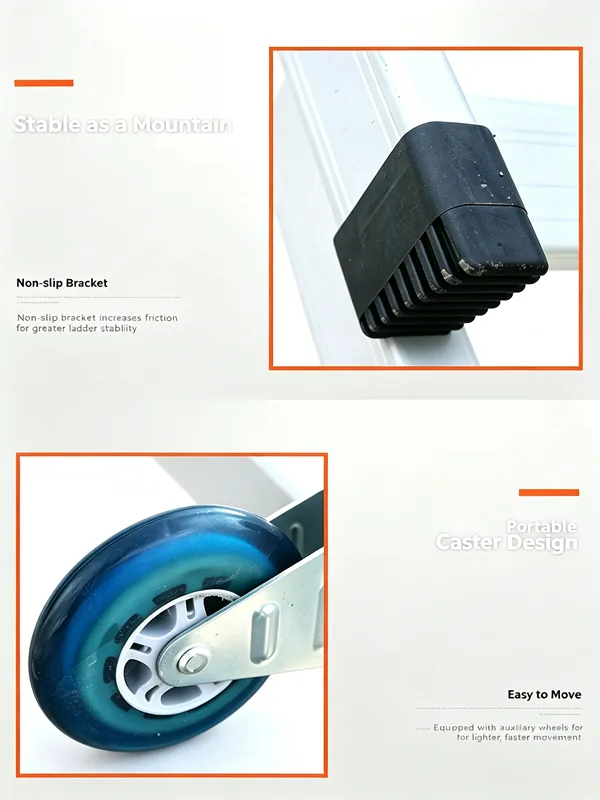

Foldable aluminum scaffold feature 5
Foldable aluminum scaffold feature 5

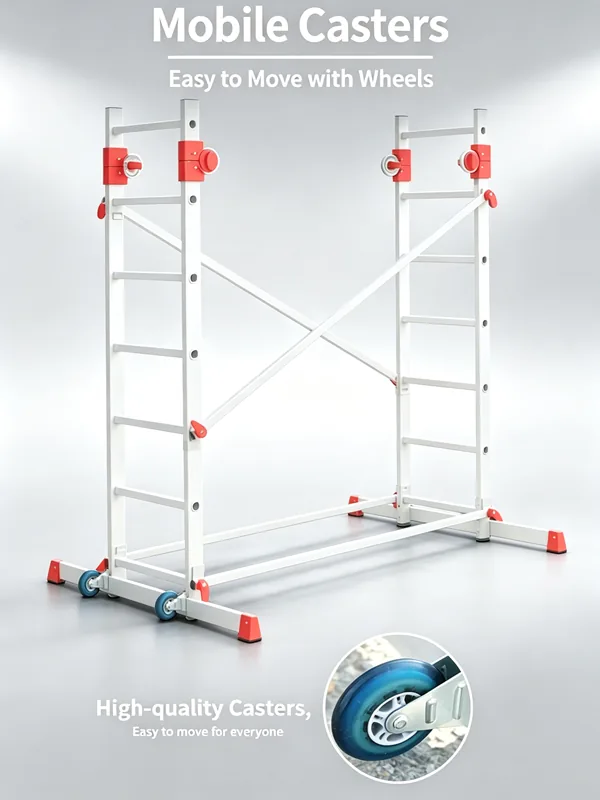

Foldable aluminum scaffold feature 6
Foldable aluminum scaffold feature 6

5 Key Advantages

1. Aluminum Alloy – Rust-Proof The scaffold platform is constructed from high-quality, thickened aviation-grade aluminum alloy, offering high strength and superior compression resistance. The structure utilizes triangular mechanics, with thickened aluminum tubing ensuring solid support. Safety handrails provide added peace of mind during climbing and work. Newly upgraded embedded crossbeams further enhance load-bearing capacity, ensuring the structure remains stable and wobble-free.

2. Reliable Quality Anti-slip design—Features a wide, thick, one-piece molded (seamless) platform that offers ample footing space; it feels comfortable and stable underfoot, with no sagging or creaking noises. The platform surface features a deep-tread anti-slip pattern to effectively prevent slipping. The feet are fitted with thick, dual-action anti-slip rubber caps that provide strong grip and floor protection, making the unit suitable for various working environments. Compared to standard scaffold platforms, we have optimized the structure of the support legs and mounting components to ensure a stable, reliable platform capable of safely supporting your weight.

3. Powerful Functionality It provides solutions for working at heights across industries such as chemicals, shipbuilding, nuclear power, and metallurgy. Whether at home, in the office, or in the garage—indoors or outdoors—this is the ideal tool. From DIY projects and interior painting to changing light bulbs or cleaning windows, this scaffold helps you easily reach high places.

4. Compact and Lightweight Featuring a foldable design, it is extremely easy to store and fits into almost any corner. It is highly portable; equipped with auxiliary wheels, moving it around is effortless and quick.

5. Versatile and Adaptable Its multifunctional design offers a wide range of uses. The platform height can be adjusted to suit your specific needs. It supports four different configurations: traditional scaffold tower, a combination work platform, an A-frame ladder, and a straight ladder. This versatility makes it suitable for various tasks, ranging from wall painting to general maintenance work. For DIY enthusiasts and interior painters, this portable scaffold is an excellent tool for tackling a wide variety of home projects.

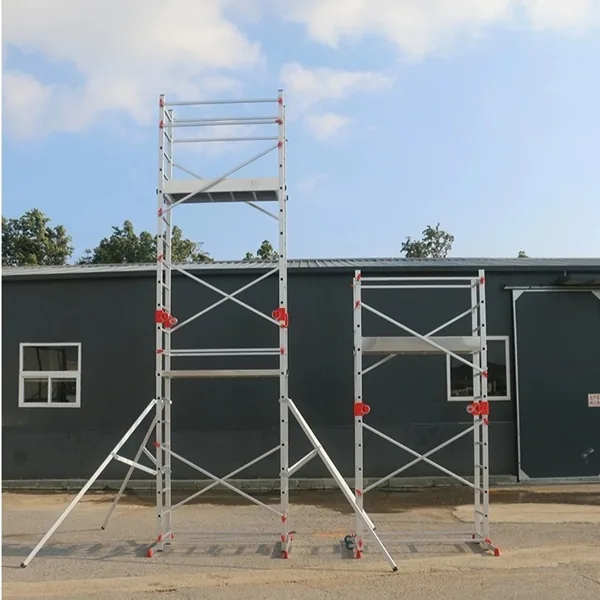

Foldable Aluminum Scaffold real world installation

Foldable Aluminum Scaffold Specifications

MODELDescriptionHeightWidthLengthWeight
FAS01Foldable Aluminum Scaffold 3.32m3.32m0.55m1.58m40.8 kgs
FAS02Foldable Aluminum Scaffold 5.6m5.6m0.55m1.58m87 kgs

Frequently Asked Questions

Q
What configurations can the foldable aluminum scaffold be used as?
It works as a 3-in-1 access system - a mobile scaffold tower, an extension ladder and a standing work platform. The platform height adjusts across four setups: a traditional scaffold tower, a combination work platform, an A-frame ladder and a straight ladder, so one unit covers access, reach and bench work.
Q
What is the safe working load and platform size?
The platform (with access hatch) measures 1560 x 455 mm and supports a 150 kg (330 lb) safe working load - enough for one operator plus tools and materials. Two height options are available: 3.32 m and 5.6 m.
Q
How big is it when set up, and how much does it weigh?
Set up, the tower is 1.58 m long and 0.55 m wide. The 3.32 m model weighs 40.8 kg and the 5.6 m model weighs 87 kg; both fold by hand without tools for compact storage and transport.
Q
What material is it made from, and is it rust-proof?
The frame is built from 6061-T6 aviation-grade aluminum alloy - high strength, lightweight and naturally corrosion-resistant, so it will not rust like steel. The platform uses a one-piece molded anti-slip surface, and the feet fit thick dual-action anti-slip rubber caps for grip on different floors.
Q
Is it easy to move and store?
Yes. It folds flat by hand with no tools and fits into almost any corner, and auxiliary wheels let you roll it around the site quickly. Lockable casters keep it steady while you work and free to move when you need to reposition.
