Cuplock Scaffolding
Engineered to international standards for safety, speed and durability on every job site.
ACE SCAFFOLD manufactures cuplock scaffolding — also called cup lock or cuplock system — a straightforward modular steel-pipe scaffold with 4-direction cup-and-blade locking for fast, heavy-duty assembly. Standards, ledgers, braces, transoms and top cups build both access and formwork shoring in one system, with each node carrying 11.12 kN (2500 lbs) and full machine-welded (AWS D1.1) joints. Hot-dip galvanized and EN 12810-tested, our cuplock scaffold suits civil, oil & gas and bridge falsework, and is exported to 65 countries. As a cuplock manufacturer and OEM factory, we provide FOB Shanghai delivery.
Key Features
- Flexible assembly
- Standardized component less part loss, simplify management
- 2–3× faster assembly/disassembly with only a small hammer
- Simple maintenance: no bolts/loose parts; lightweight, robust, rust-tolerant

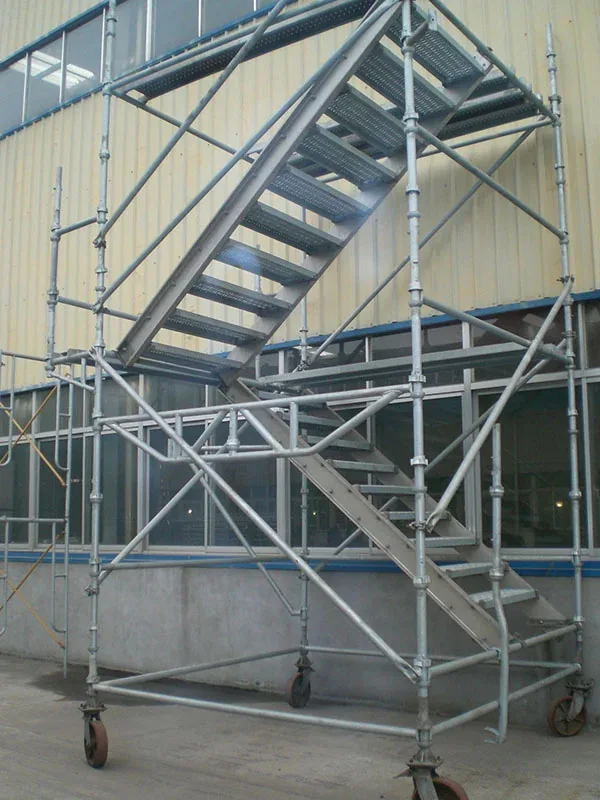

Cuplock scaffolding — also called cup lock, cup scaffolding. It is a straightforward modular steel-pipe system with 4-direction cup-and-blade locking, built from standards, ledgers, braces, planks and transoms for access, and deck beams, infill beams and drop heads for formwork shoring.
Cuplock scaffolding offers rapid, effortless assembly and disassembly, structural stability and reliability, comprehensive component options, high versatility and high load-bearing capacity. Safe, easy to fabricate and resistant to component loss, it simplifies management, transport and on-site work — greatly improving efficiency. It has won several domestic and international awards and was named by the Ministry of Construction as one of the ten key new technologies to promote before 2000.
Cuplock Scaffolding Application
Cuplock is an established steel-system scaffold that is easy to erect and safe, making it popular for civil and oil & gas projects — birdcage, access, temporary support and concrete shoring. The hot-dip galvanized Cuplock system is a proven heavy-duty support: relatively light, quick to assemble and multi-purpose, serving both falsework and access. It suits building and civil engineering such as motorway bridges, offices and retail developments.
The cup-lock node accepts up to eight combined ledger and brace connections. Each connection safely carries 11.12 kN (2500 lbs); the total ledger load must stay within the recommended leg load for the given bracing. Standards and ledgers are fully machine-welded for clear, flat, seamless joints, with welders trained to AWS D1.1 for butt and fillet welding.
ACE SCAFFOLD is a cuplock manufacturer and OEM factory in China, supplying and exporting to 65 countries. Components are EN 12810-tested, CE-certified and hot-dip galvanized for longer service life and damage resistance. Production follows clear steps — material, cutting, welding, galvanizing, cleaning, packing — and we supply the full accessory range, with customized products welcome.
Cuplock Scaffolding Specifications
| Material | Q235 / Q345 High-strength Steel |
| Tube Size | Ø48.3 × 3.2 mm |
| Surface Treatment | Hot-dip Galvanized |
| Compliance Standard | EN 12810 / BS 1139 / AS-NZS 1576 |
| Certificate | ISO 9001, CE |
| OEM / ODM | Available |
| Packaging | Bundle / Steel Pallet |
| Lead Time | 30 days (production, excl. sea freight) |
| MOQ | 1 × 20ft Container |
Cuplock Scaffolding Components
| Description | Model | Unit Weight |
|---|---|---|

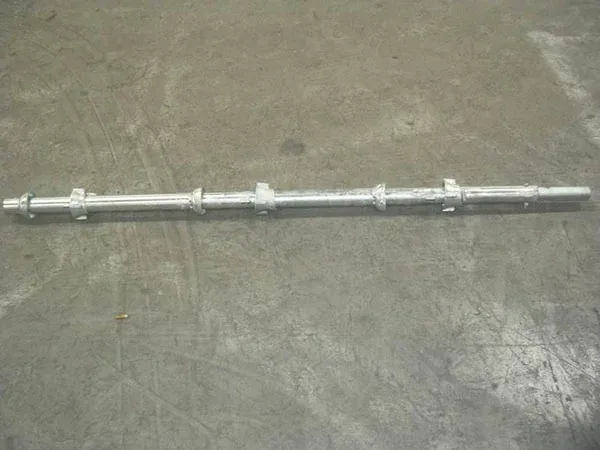

| VERTICAL 1M (3'3") | CV33 | 6.00 kgs |
| VERTICAL 1.5M (4'11") | CV411 | 8.60 kgs |
| VERTICAL 2M (6'6") | CV66 | 11.20 kgs |
| VERTICAL 2.5M (8'2") | CV82 | 13.80 kgs |
| VERTICAL 3M (9'9") | CV99 | 16.40 kgs |

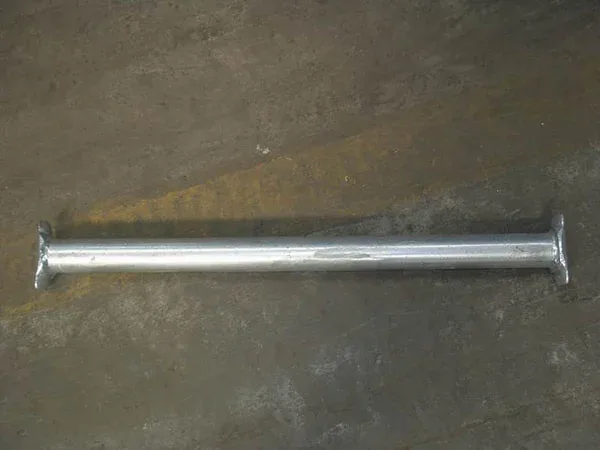

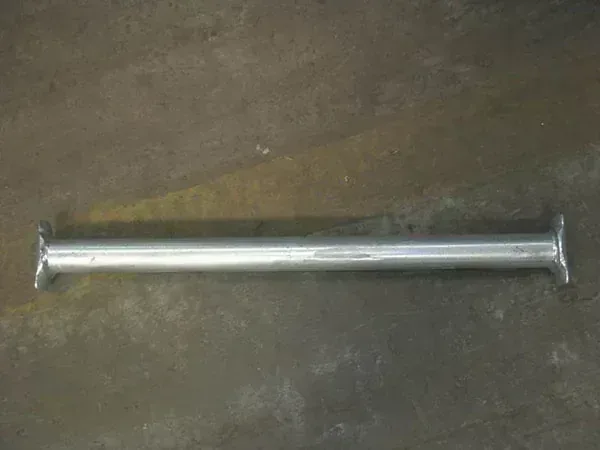

| HORIZONTAL 3.05M (10'0") | CH100 | 11.80 kgs |
| HORIZONTAL 2.74M (9'0") | CH90 | 10.80 kgs |
| HORIZONTAL 2.44M (8'0") | CH80 | 9.50 kgs |
| HORIZONTAL 2.13M (7'0") | CH70 | 8.30 kgs |
| HORIZONTAL 1.83M (6'0") | CH60 | 7.20 kgs |
| HORIZONTAL 1.52M (5'0") | CH50 | 6.00 kgs |
| HORIZONTAL 1.22M (4'0") | CH40 | 4.90 kgs |
| HORIZONTAL 1.067M (3'6") | CH36 | 4.30 kgs |
| HORIZONTAL 0.91M (3'0") | CH30 | 3.72 kgs |
| FACE BRACE 2.5M x 2M (8'2" x 6'6" ) | CFB82 | 10.57 kgs |
| FACE BRACE 2.44M x 2M (8'0" x 6'6" ) | CFB80 | 10.42 kgs |
| FACE BRACE 2.13M x 2M (7'0" x 6'6" ) | CFB70 | 9.78 kgs |
| FACE BRACE 1.52M x 2M (5'0" x 6'6" ) | CFB50 | 8.70 kgs |
| CLAMP BRACE 2.5M x 2M (8'2" x 6'6" ) | CCB82 | 11.20 kgs |
| CLAMP BRACE 2.44M x 2M (8'0" x 6'6" ) | CCB80 | 11.10 kgs |
| CLAMP BRACE 2.13M x 2M (7'0" x 6'6" ) | CCB70 | 10.50 kgs |
| CLAMP BRACE 1.52M x 2M (5'0" x 6'6" ) | CCB50 | 9.50 kgs |
| 1 BOARD | CBB10 | 1.52 kgs |
| 2 BOARD | CBB110 | 5.50 kgs |
| 3 BOARD | CBB27 | 7.22 kgs |

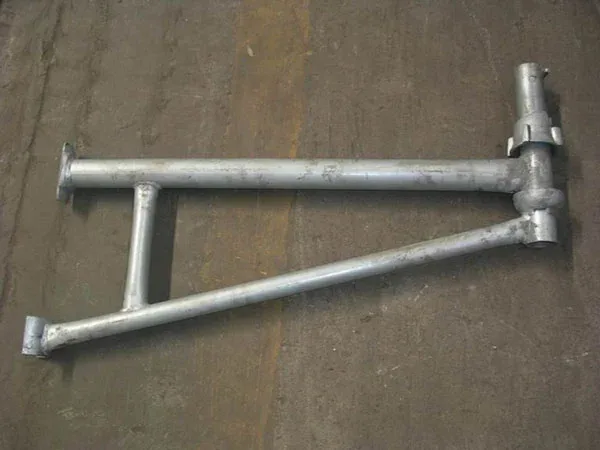

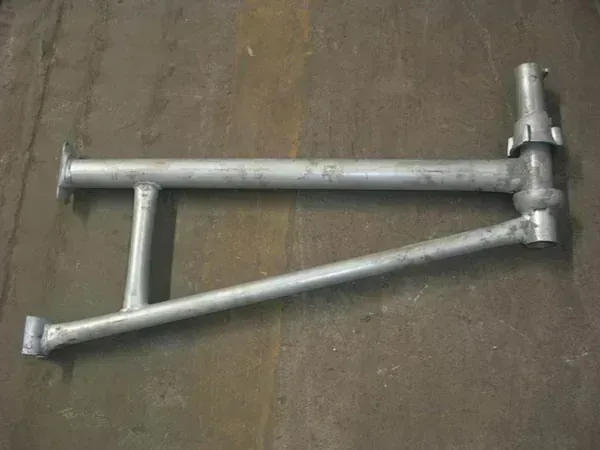

| CUPLOCK LADDDER BRACKET | CLBW | 3.30 kgs |
| CUPLOCK LADDDER 1M (3') | CSLW3 | 7.72 kgs |
| CUPLOCK LADDDER 1.5M (5') | CSLW5 | 11.09 kgs |
| CUPLOCK LADDDER 3M (10') | CSLW10 | 21.19 kgs |
