Universal Scaffold Stair

Engineered to international standards for safety, speed and durability on every job site.

Overview

The universal scaffold stair is a hook-on scaffold stair that hangs directly on the ledger or transom of any ringlock, cuplock or QES scaffold, so it gives safe inclined access across system scaffolds of different bay widths. Unlike a ringlock stair whose wedge head locks into a rosette and fixes the width, this universal stair uses a hook fitting to mount on the beam, fitting mixed scaffold systems on one unit. ACE SCAFFOLD supplies it with OEM/ODM and FOB Shanghai delivery.

Universal Scaffold Stair - Hook-on Scaffold Stair for Any System

Key Features

  • Hook-on fitting: hangs directly on the ledger or transom of any ringlock/cuplock/QES scaffold
  • Universal width: adapts to system scaffolds of different bay widths, not fixed by a rosette
  • Mixed-system access: safe inclined access where ringlock, cuplock and QES scaffolds are used together
  • Simple installation: hooks drop onto the beam without rosette alignment
  • One size: L2.13M x H2.0M x W1.00M, 100 kgs
  • OEM/ODM and FOB Shanghai delivery

A universal scaffold stair is a prefabricated hook-on staircase that mounts on the horizontal members (ledger or transom) of ringlock, cuplock and QES scaffold systems. Instead of plugging a wedge head into a rosette - which fixes the stair width to one bay size - it carries hook fittings that drop over the beam, so the same stair serves system scaffolds of different widths. The unit gives crews safe inclined access between levels where mixed or changing scaffold systems are in use.

Hook-on Fitting for Any System

The stair is fitted with hooks that drop directly onto the ledger or transom of ringlock, cuplock and QES scaffold systems. Because it hangs on the beam rather than locking into a rosette, one stair fits multiple system scaffolds.

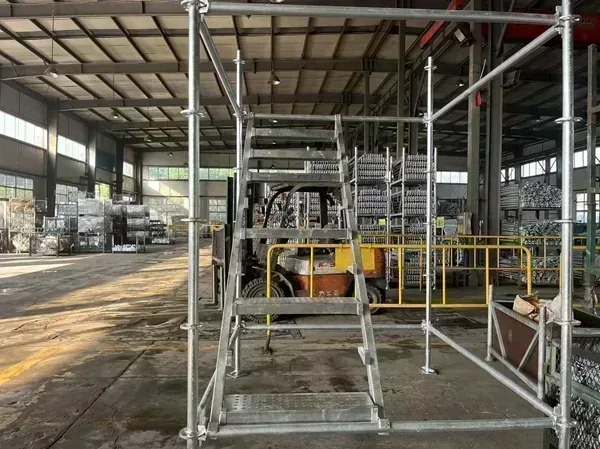

Universal Scaffold Stair front view
Universal Scaffold Stair front view

Why It Is Not Width-Fixed Like a Rosette Stair

A ringlock scaffold stair connects its wedge head into a rosette, so its width is fixed to the rosette spacing. This universal stair skips the rosette entirely and hooks onto the beam, so it adapts to system scaffolds of different bay widths with the same unit.

Compatible Scaffold Systems

The universal scaffold stair works with ringlock scaffolding, cuplock scaffolding and QES scaffolding, and any system scaffold whose ledgers or transoms accept a hook fitting. It is the practical choice when a site mixes scaffold systems or changes bay widths between levels.

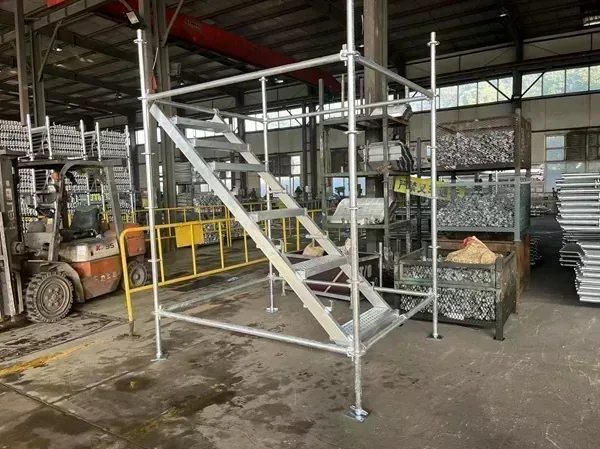

Universal Scaffold Stair side view
Universal Scaffold Stair side view

Stair Set Composition

One universal scaffold stair set is made up of 2 stair stringers and 9 stair treads. The two stringers form the diagonal sides of the stair, and the nine treads lock between them to make the climbing steps.

Dimensions & Weight

The universal scaffold stair is supplied in one size: L2.13M long x H2.0M high x W1.00M wide, with a unit weight of 100 kgs. The dimensions suit standard scaffold bay heights, and the hook fitting keeps installation simple across systems.

Universal Scaffold Stair Specifications

DescriptionSizeUnit Weight
Universal Scaffold StairL2.13M x H2.0M x W1.00M100 kgs

Frequently Asked Questions

Q
What is a universal scaffold stair?
A universal scaffold stair is a hook-on staircase that hangs on the ledger or transom of ringlock, cuplock and QES scaffold systems, giving safe inclined access across system scaffolds of different bay widths.
Q
How is it different from a ringlock scaffold stair?
A ringlock stair plugs its wedge head into a rosette, so its width is fixed. The universal stair skips the rosette and hooks onto the beam, so it fits system scaffolds of different widths with one unit.
Q
Which scaffold systems does it fit?
It fits ringlock scaffolding, cuplock scaffolding and QES scaffolding, and any system scaffold whose ledgers or transoms accept a hook fitting.
