Cuplock Board Bracket

Engineered to international standards for safety, speed and durability on every job site.

Overview

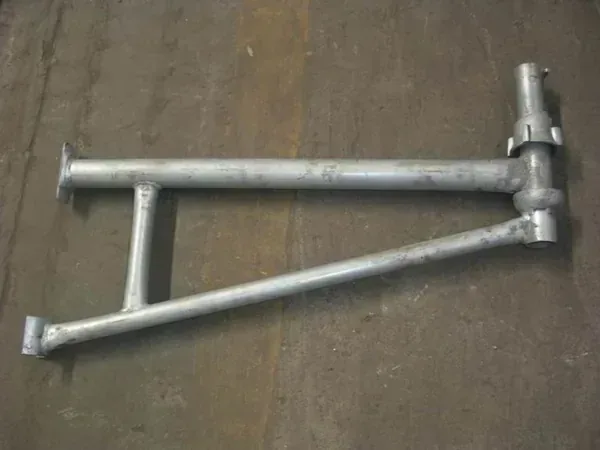

The Cuplock Board Bracket - also called a cuplock plank bracket, board bracket or transom bracket - is a bracket that fixes to a cuplock standard to carry one, two or three scaffold boards at an intermediate level, widening a working platform or building a walkway outside the line of uprights. It seats at any cuplock cup node with a forged blade that drops into the bottom cup and locks with the top cup, so the ledge sits at the exact height the boards need. Offered for 1 board (CBB10, 1.52 kgs), 2 boards (CBB110, 5.50 kgs) and 3 boards (CBB27, 7.22 kgs) and hot-dip galvanized for site life, it is built to OSHA, ANSI and CSA guidelines with a 4:1 safety factor, ISO 9001 quality and FOB Shanghai delivery from ACE SCAFFOLD.

Key Features

• Hot-dip galvanized Q235/Q345 carbon steel
• Seats at any cuplock cup node - forged blade into bottom cup, top cup locks it
• Carries 1, 2 or 3 scaffold boards at an intermediate level
• Three models: CBB10 (1 board, 1.52 kgs), CBB110 (2 boards, 5.50 kgs), CBB27 (3 boards, 7.22 kgs)
• Widens platforms or builds walkways without a full bay
• Built to OSHA, ANSI and CSA guidelines, 4:1 safety factor, ISO 9001, FOB Shanghai

On a cuplock scaffold, the cuplock board bracket is the quick way to add board space without laying a full bay. The bracket seats on a cuplock standard at any cup node: a forged blade drops into the welded bottom cup and the forged top cup is tapped down to lock it with a single hammer blow, so the ledge can be set at the deck height you need. From that node the bracket cantilevers out and its formed hooks or rests carry 1, 2 or 3 scaffold boards, letting a platform step out beyond the standards for access, material staging or a narrow walkway along a wall or machine. Because the bracket uses the cuplock cup node rather than a loose fitting, nothing projects into the climbing space and the board line stays clean. Our cuplock board brackets are hot-dip galvanized Q235/Q345 carbon steel, built to OSHA, ANSI and CSA guidelines with a 4:1 safety factor, ISO 9001 quality and FOB Shanghai delivery from ACE SCAFFOLD.

Cuplock Board Bracket

The cuplock board bracket is a bracket that fixes to a cuplock standard to carry one, two or three scaffold boards at an intermediate level, widening a working platform or building a walkway outside the line of uprights.

Cup-Node Seating

The bracket seats on a cuplock standard at any cup node. A forged blade drops into the welded bottom cup and the forged top cup is tapped down to lock it with a single hammer blow, so the board ledge can be set at the exact deck height needed.

1, 2 or 3 Boards

From the node the bracket cantilevers out and its formed hooks or rests carry 1, 2 or 3 scaffold boards. That lets a platform step out beyond the standards for access, material staging or a narrow walkway along a wall or machine.

Hot-dip Galvanized

Every cuplock board bracket is hot-dip galvanized Q235/Q345 carbon steel for corrosion resistance on site, coastal and offshore projects, and is built to OSHA, ANSI and CSA guidelines with a 4:1 safety factor.

Cuplock Board Bracket Specifications
