Frame Scaffolding

Engineered to international standards for safety, speed and durability on every job site.

Overview

ACE SCAFFOLD manufactures frame scaffolding — also called walk-through scaffolding or mason frame — one of the most widely used steel access systems on construction sites. A standard frame set (two welded main frames, cross braces and joint pins) assembles in minutes and, fitted with caster wheels, becomes mobile scaffolding that moves by hand. Our frame scaffold works as exterior, interior, mobile or full-span birdcage scaffold, built from powder-coated Q235/Q345 steel with ISO 9001 quality. As a frame scaffolding manufacturer, we offer OEM/ODM, custom colors and FOB Shanghai delivery.

Key Features

• Widely used
• Move easily
• Customized color
• OEM available
• Small quantity is acceptable
• Made in China guarantee good price

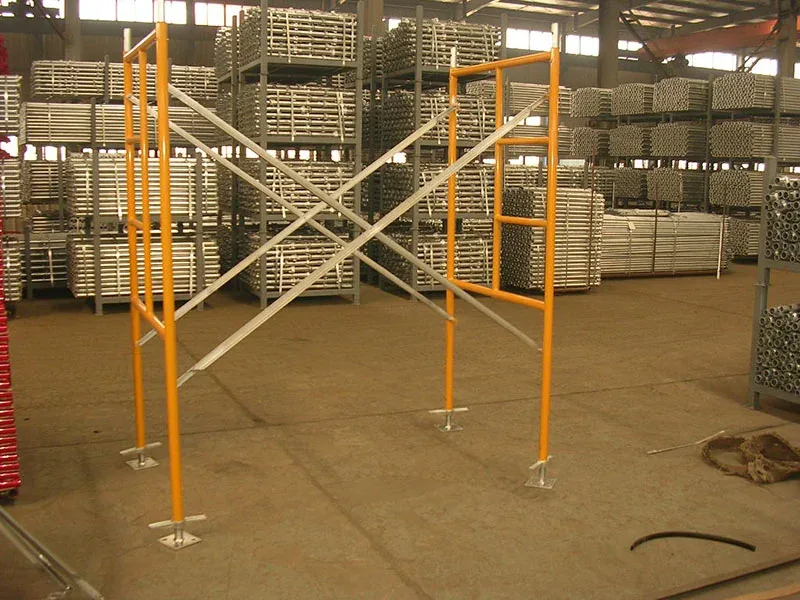

Frame scaffolding, also called walk-through or mason frame scaffolding, is among the most widely used access systems in construction. A standard frame set includes 2 welded main frames, 2 pairs of cross braces, and 4 joint pins. Caster wheels can be fitted to the base of the frame, so it also works as mobile scaffolding that moves easily.

Frame scaffolding was first developed in the late 1950s in the United States as a fast, practical job-site tool. It spread quickly for its simple assembly, easy relocation, strong load capacity, safe and reliable use, and good cost efficiency. By the 1960s, Europe and Japan had introduced and refined the system. In those markets frame scaffolding now makes up roughly 50% of all scaffold types. Since the 1970s, China has imported frame systems from Japan, the US and the UK and applied them on high-rise projects with strong results.

It serves not only as interior and exterior access scaffolding, but also as slab and beam formwork supports and mobile scaffolds — a truly multi-function system.

Frame scaffolding is a standardized steel frame scaffold system. It works as exterior scaffold, interior scaffold, mobile frame scaffold (with caster wheels), or full-span birdcage scaffold.

Frame Scaffolding Application

Frame scaffolding is used for: (1) formwork propping and flying-form support in buildings, halls, bridges, viaducts and tunnels; (2) interior and exterior perimeter scaffolds on high-rise buildings; (3) movable work platforms for MEP installation, ship repair and other fit-out works; (4) temporary site dormitories, warehouses or sheds when paired with a simple roof frame; (5) temporary reviewing stands and spectator terraces.

Frame scaffolding combines flexible assembly and disassembly, easy transportation and strong versatility — which is why it is so widely used across the construction industry.

Frame Scaffolding Specifications

Frame Scaffolding Components

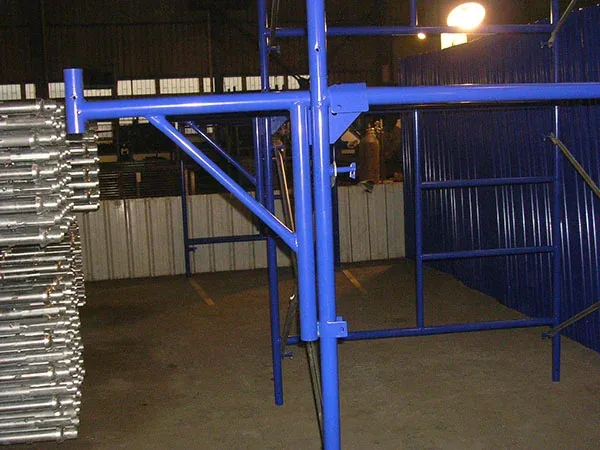

bracket

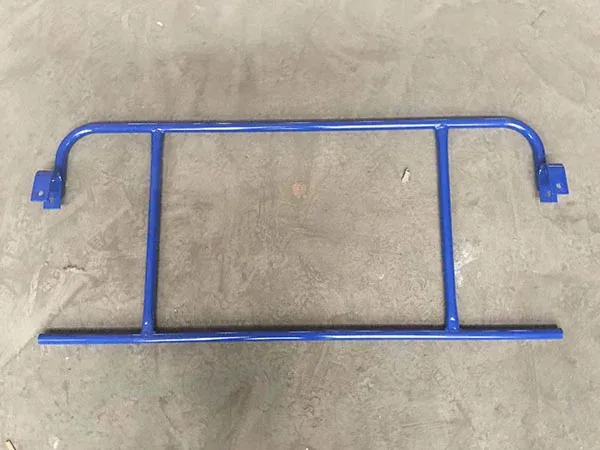

end blocks

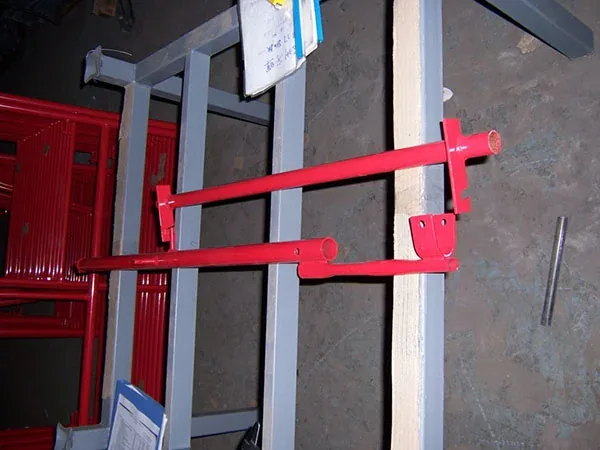

guardrail post

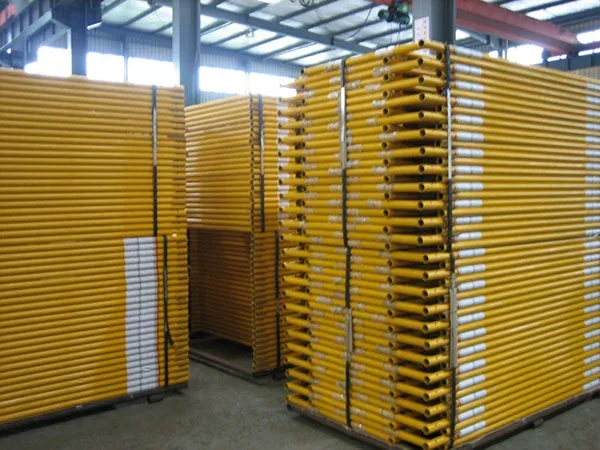

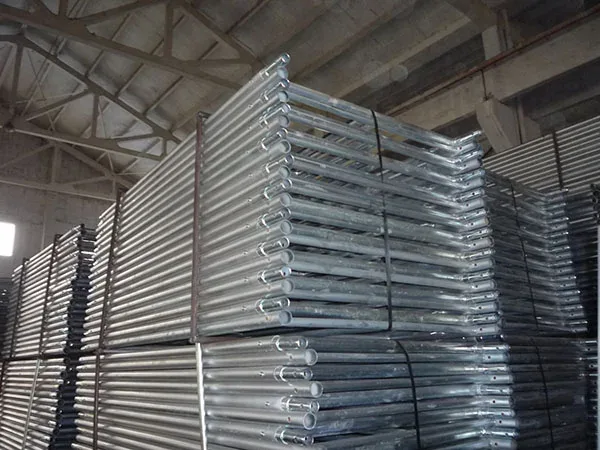

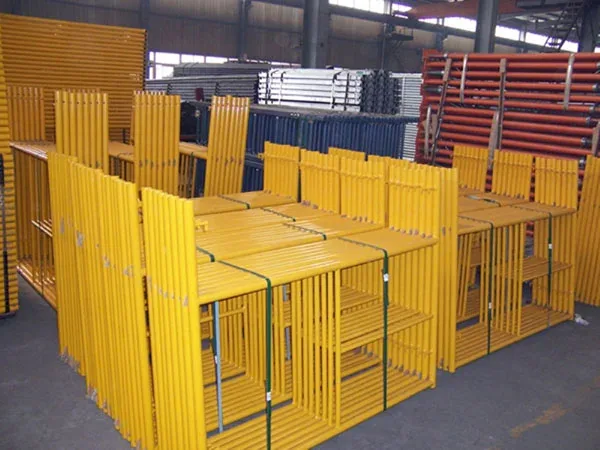

Frame Scaffolding Picture
