Toe Board American Type

Engineered to international standards for safety, speed and durability on every job site.

Overview

The Toe Board American Type - also called an American type toe board or two-end hook toe board - is a steel kick-plate built to US standards and fitted with hooks at both ends. It sits along the open edge of a scaffold platform to stop tools, fasteners and small debris from being kicked off the deck, and the two-end hooks lock onto the platform frame so the board stays in place during heavy ship-repair work.

Toe Board American Type - US Scaffold Toe Board with Two-End Hooks

Key Features

  • Steel kick-plate for US-standard scaffold platform edge protection
  • Two-end hook fixing locks the board to the platform frame
  • Built for US ship repair, dry dock and marine construction
  • Pressed Q235 steel for impact resistance
  • Pre-galvanizing or powder coating finish options
  • Nine imperial lengths: 2'/3'/3'6"/4'/5'/6'/7'/8'/10'
  • Running weights from 3.4 kgs to 12.15 kgs
  • ISO 9001 quality with FOB Shanghai delivery

A toe board American type is a low steel barrier fixed at the platform edge of a scaffold to prevent tools, loose fittings and small debris from sliding off the working deck. Unlike the interlocking ringlock-style board, this US version carries a formed hook at each end so it can be clipped directly onto the platform frame of US-standard scaffolding, which is widely used in North American shipyards, dry docks and construction sites. Boards are pressed from Q235 steel and finished in pre-galvanizing or powder coating to suit indoor or marine exposure. ACE SCAFFOLD supplies the toe board American type in nine imperial lengths from 2' to 10', with ISO 9001 quality and FOB Shanghai delivery.

A toe board American type is the low steel barrier that runs along the open edge of a US-standard scaffold platform. It blocks tools, fasteners and small debris from being kicked off the working deck during ship repair and construction, giving crews and people passing below a safer, cleaner site.

Two-End Hook Fixing

Each end of the board is formed into a hook that drops onto the platform frame of US-standard scaffolding. The two-end hook design means no extra clips or ties are needed - the board sits on the frame under its own weight and locks against the uprights, so it stays in place during heavy ship-repair activity and rough weather.

Built for US Ship Repair

The Toe Board American Type is shaped for the platform frames used in North American shipyards, dry docks and marine construction. The same profile also fits commercial construction sites that build with US-spec scaffolding, giving crews one board style for both ship repair and onshore work.

Pre-Galvanizing or Powder Coating

Boards are pressed from Q235 steel and finished in either pre-galvanizing for general site exposure or powder coating for ship-repair and marine environments where colour coding or extra corrosion resistance is required. Both finishes give a long service life and meet common site specifications.

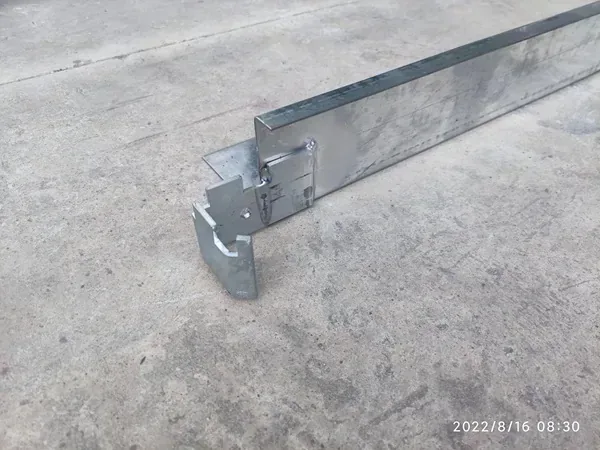

Toe Board American Type pre-galvanizing finish
Toe Board American Type pre-galvanizing finish

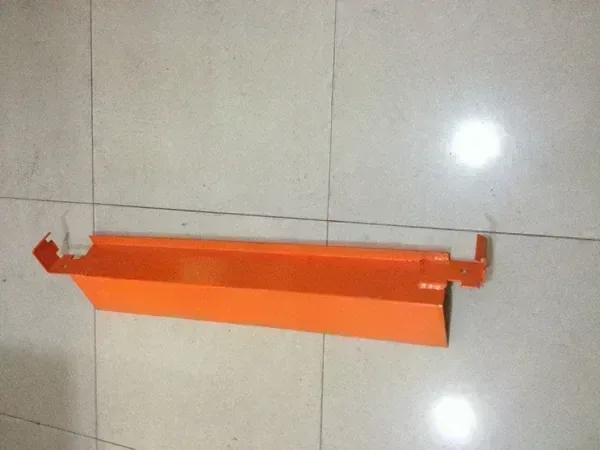

Toe Board American Type powder coating finish
Toe Board American Type powder coating finish

Nine Imperial Lengths

The range covers the common US platform bay sizes - 2', 3', 3'6", 4', 5', 6', 7', 8' and 10' - with running weights from 3.4 kgs to 12.15 kgs. Crews can pick the board length to match the bay without cutting.

Toe Board American Type Specifications

DescriptionWeight
2' toe board American type3.4 kgs
3' toe board American type4.65 kgs
3'6" toe board American type5.3 kgs
4' toe board American type5.9 kgs
5' toe board American type7.15 kgs
6' toe board American type8.4 kgs
7' toe board American type9.65 kgs
8' toe board American type10.9 kgs
10' toe board American type12.15 kgs

Frequently Asked Questions

Q
What is a toe board American type?
A toe board American type is a steel kick-plate built to US scaffold standards. It sits at the platform edge to stop tools and debris from being kicked off and is fitted with hooks at both ends so it clips directly onto US-standard platform frames.
Q
How does it differ from an interlocking toe board?
Both boards serve the same edge-protection role, but the interlocking style uses interlocking ends that join adjacent boards end-to-end, while the American type uses two formed hooks that drop onto the platform frame. The American type is shaped for US-spec frames, while the interlocking type fits ringlock, cuplock and frame systems.
Q
Why is it called an American type toe board?
It is built to the imperial sizes and platform frame profile common in North American scaffolding, so it is widely exported to the US for ship repair, dry dock and onshore construction work.
Q
What surface finishes are available?
The Toe Board American Type is available in pre-galvanizing for general site use and powder coating for ship-repair, marine and colour-coded sites. Both finishes are applied after pressing.
Q
What sizes does the toe board American type come in?
The range covers nine imperial lengths: 2', 3', 3'6", 4', 5', 6', 7', 8' and 10', with running weights of 3.4 kgs, 4.65 kgs, 5.3 kgs, 5.9 kgs, 7.15 kgs, 8.4 kgs, 9.65 kgs, 10.9 kgs and 12.15 kgs respectively.
Q
What material is the toe board American type made of?
Boards are pressed from Q235 steel for impact resistance, then finished in pre-galvanizing or powder coating depending on the site exposure.
Q
How are the two-end hooks attached?
The hooks are formed at both ends of the pressed steel board. No bolts are required - the board drops onto the platform frame and the two hooks lock it against the uprights.
Q
Can it be used outside the US?
Yes. The board fits any scaffold that uses the US-standard platform frame profile, including commercial construction sites and marine yards outside North America that build with US-spec equipment.
Q
Is the toe board American type suitable for ship repair?
Yes. It is specifically shaped for the platform frames used in North American shipyards and dry docks, and the powder-coated finish gives extra corrosion resistance in marine exposure.
Q
How much does the 4' toe board American type weigh?
The 4' toe board American type weighs 5.9 kgs. Running weights range from 3.4 kgs for the 2' board up to 12.15 kgs for the 10' board, with the 3' board at 4.65 kgs, the 3'6" board at 5.3 kgs, the 5' board at 7.15 kgs, the 6' board at 8.4 kgs, the 7' board at 9.65 kgs and the 8' board at 10.9 kgs.
Q
Does the toe board American type meet safety standards?
ACE SCAFFOLD manufactures the toe board American type under ISO 9001 quality management and to the dimensions and finishes commonly specified on US ship-repair and construction sites.
Q
Can I get custom lengths or colours?
Yes. ACE SCAFFOLD offers OEM/ODM services, including custom imperial lengths and powder-coating colours. Contact us with your project size, quantity and finish.
