China scaffolding is widely used in China and other developed countries. It is in good quality and low price due to automatic welding . Due to bulk production we always have 1000 tons stock ready for shipment .
Ringlock Scaffold Components

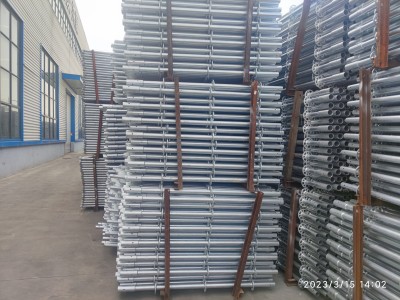

|CRV020||Vertical 200mm||Q345 , 48.3*3.25mm||1.72 kgs||HDG|
|CRV035||Vertical 350mm||Q345 , 48.3*3.25mm||2.92 kgs||HDG|
|CRV050||Vertical 500mm||Q345 , 48.3*3.25mm||3.45kgs||HDG|
|CRV100||Vertical 1000mm||Q345 , 48.3*3.25mm||5.81kgs||HDG|
|CRV150||Vertical 1500mm||Q345 , 48.3*3.25mm||8.19kgs||HDG|
|CRV200||Vertical 2000mm||Q345 , 48.3*3.25mm||10.60kgs||HDG|
|CRV250||Vertical 2500mm||Q345 , 48.3*3.25mm||13.01kgs||HDG|
|CRV300||Vertical 3000mm||Q345 , 48.3*3.25mm||15.32kgs||HDG|

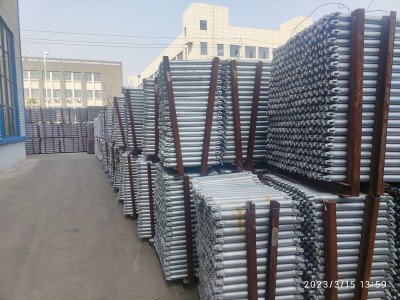

|CRH030||Horizontal 300mm||Q235 , 48.3*2.75mm||1.42kgs||HDG|
|CRH060||Horizontal 600mm||Q235 , 48.3*2.75mm||2.36kgs||HDG|
|CRH090||Horizontal 900mm||Q235 , 48.3*2.75mm||3.29kgs||HDG|
|CRH120||Horizontal 1200mm||Q235 , 48.3*2.75mm||4.24kgs||HDG|
|CRH150||Horizontal 1500mm||Q235 , 48.3*2.75mm||5.22kgs||HDG|
|CRH180||Horizontal 1800mm||Q235 , 48.3*2.75mm||6.16kgs||HDG|
|CBB060||Bay Brace 600mm x 1500mm||Q195 , 42*2.75mm||5.43kgs||HDG|
|CBB090||Bay Brace 900mm x 1500mm||Q195 , 42*2.75mm||5.73kgs||HDG|
|CBB120||Bay Brace 1200mm x 1500mm||Q195 , 42*2.75mm||6.10kgs||HDG|
|CBB150||Bay Brace 1500mm x 1500mm||Q195 , 42*2.75mm||6.54kgs||HDG|
|CBB180||Bay Brace 1800mm x 1500mm||Q195 , 42*2.75mm||7.00kgs||HDG|
|CBJ5||Base Jack 500mm||3.45kgs||HDG|
|CUJ6||U head jack 600mm||4.95kgs||HDG|

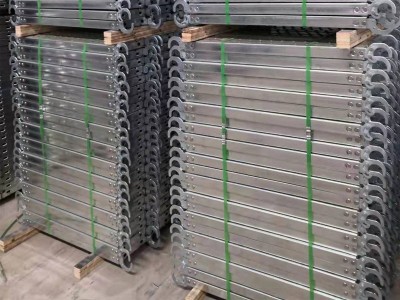

|SP12||Steel Plank 1.2m||6.20kgs||Pre-galvanizing|
|SP15||Steel Plank 1.5m||Column 3 Value 23||7.80kgs||Pre-galvanizing|
|SP18||Steel Plank 1.8m||Column 3 Value 24||8.80kgs||Pre-galvanizing|
If you are looking for a scaffolding that is safe, stable and easy to use, our ringlock scaffold will be your best choice. Engineering Design, Customized Sizes & Competitive Price Save Your Cost & Time.
As all components are galvanized and built for increased safety, service life, and resistance to damage, they are perfect for all types of applications and industries.
The Ringlock system can accommodate up to eight connections of combined ledger and braces. Each of these connections can safely carry a load of 11.12kN (2500LBS).
However, the total sum of the ledger loads must not exceed the recommended leg load for the given bracing situation.
Due to our standards and ledgers are fully welded by machine, the products are clean, flat and seamless. In addition, Our welders are well trained by AWSD1.1 to standardize Butt Joint welding, Semi-Auto Fillet Welding and Auto Fillet Welding.
How to Erect Ringlock Scaffolding
- Put Adjustable Base Jack In Place According to Structure Requirement
- Adjust Base Jack to Same Horizontal (Use Jack Nut)
- Assembly Ringlock Base Collars On Base Jacks
- Connect the Base Collars By Ringlock Ledgers
- Leveling the Base Collar Ledgers On the Same Horizontal (By Spirit Level)
- Erect 1st Layer of Ringlock Standard On the Base Collar
- Put All Ledgers on for 1st Layer of Ringlock Standards
- Adjust the Ledgers of 1st Layer Ringlock Standard to the Same Horizontal
- Fixing 1st Layer Ringlock Standards by Ringlock Diagonal and Horizontal Braces
- Put Ringlock Stairs and Planks On
- Erect 2nd Layher Standard and Fixing it By Ringlock Scaffold Ledgers and Braces
- Erect More Layers of Ringlock Uprights and Decks
