QES Scaffolding
QES Scaffolding also called quick erect scaffold. It is a fast-erecting modular scaffolding system made of galvanized steel. Provides high-productivity on irregular structures and restricted entry situations. QES is easy and straight forward to erect. Posts and horizontals make up the two principle components and their connecting hardware is permanently set in place. Each post is fitted with forged rings welded in place at regular 19½” intervals. The rings themselves have eight openings so that the horizontals can be attached at varying angles to meet field conditions. Captive wedges, which are integral to the ends of each horizontal complete the connection to the ring.

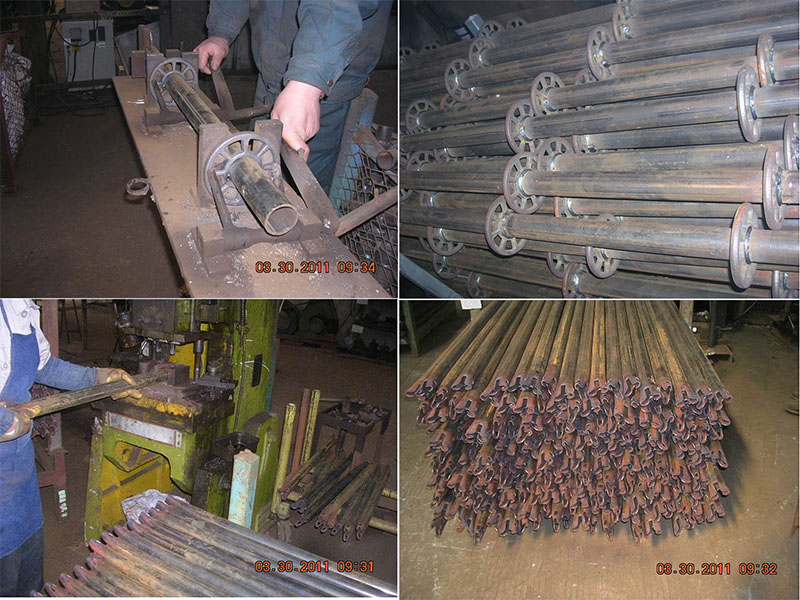

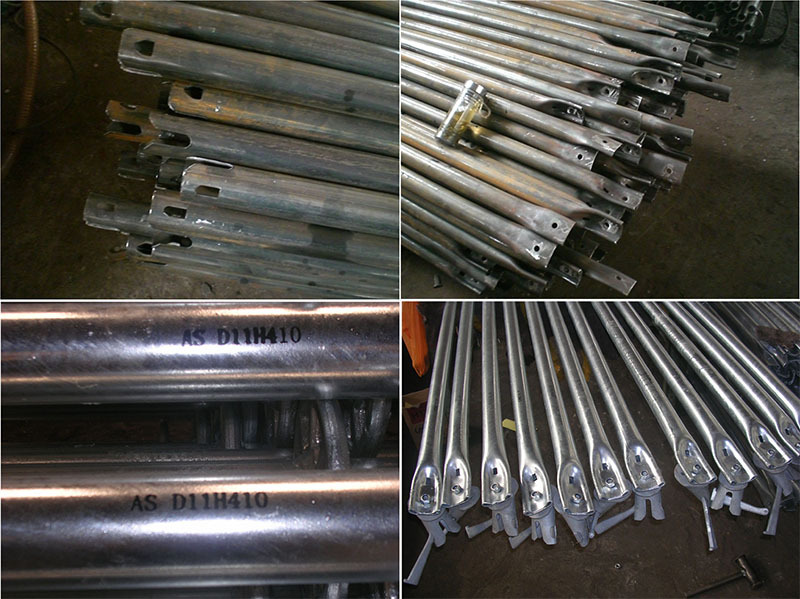

QES Pictures
| Item # | Description | Unit Weight | Surface | Material |
|---|---|---|---|---|
| QP3 | 3' 3" POST | 5.81 | HDG | SA 414-G |
| QP6 | 6' 6" POST | 10.47 | HDG | SA 414-G |
| QP9 | 9' 9" POST | 15.6 | HDG | SA 414-G |
| QH2 | 2' HORIZONTAL | 2.4 | HDG | SA 414-G |
| QH3 | 3' HORIZONTAL | 3.5 | HDG | SA 414-G |
| QH4 | 4' HORIZONTAL | 4.6 | HDG | SA 414-G |
| QH5 | 5' HORIZONTAL | 5.69 | HDG | SA 414-G |
| QH6 | 6' HORIZONTAL | 6.8 | HDG | SA 414-G |
| QH7 | 7' HORIZONTAL | 7.72 | HDG | SA 414-G |
| QH8 | 8' HORIZONTAL | 8.74 | HDG | SA 414-G |
| QH10 | 10' HORIZONTAL | 11.06 | HDG | SA 414-G |
| QD3 | 3' DIAGONAL BRACE | 7.77 | HDG | Q345 |
| QD4 | 4' DIAGONAL BRACE | 8.2 | HDG | Q345 |
| QD5 | 5' DIAGONAL BRACE | 8.53 | HDG | Q345 |
| QD6 | 6' DIAGONAL | 9 | HDG | Q345 |
| QD7 | 7' DIAGONAL BRACE | 9.75 | HDG | Q345 |
| QD8 | 8' DIAGONAL BRACE | 10.35 | HDG | Q345 |
| QD10 | 10' DIAGONAL BRACE | 11.97 | HDG | Q345 |
| QL20 | 20" ADJUSTABLE BASE | 5.35 | EP | Q345 |
| QL21 | 20" SWIVEL BASE | 6.6 | EP | Q345 |
| QLC | BASE COLLAR | 2.85 | HDG | Q345 |
| QB2 | 2-PLANK BRACKET | 7.69 | HDG | Q345 |
| QB3 | 3-PLANK BRACKET | 12.53 | HDG | Q345 |
QES Drawing
